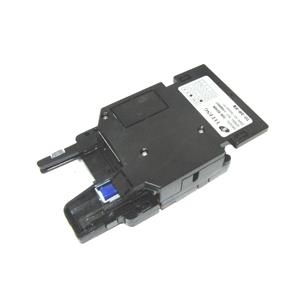

EMV Card Reader w/o Bracket, TDR-R240N (Not C4000)
Click for larger image.
* The TDR version carder is NOT for use with the Hantle C4000. For use with the Hantle C4000, you must continue to use the KYT version card reader GMMCR-01005 or upgrade kit GMUPG-01013.
* If upgrading from a KYT to a TDR version card reader, you must also purchase a new mounting bracket and new card reader cable for the TDR version card reader to mount and function correctly. Or, simply purchase a complete TDR EMV Upgrade Kit.
-TDR Mounting Brackets
-TDR Cables
* If upgrading from a KYT to a TDR version card reader, you must also purchase a new mounting bracket and new card reader cable for the TDR version card reader to mount and function correctly. Or, simply purchase a complete TDR EMV Upgrade Kit.
-TDR Mounting Brackets
GMMCR-03007 - G1900/G2500
GMMCR-03008 - 1700W/T4000/GT3000/GT5000/Universal Kiosk
GMMCR-03009 - C6000/G6000/Onyx Series
GMMCR-03008 - 1700W/T4000/GT3000/GT5000/Universal Kiosk
GMMCR-03009 - C6000/G6000/Onyx Series
-TDR Cables
GMCBL-04045 - 1700W/G1900/G2500/GT3000/Onyx Series
GMCBL-04048 - G6000
Product Notes:
- The new TDR reader is backward compatible with all models that currently support an EMV reader.
- The only exception to this are C4000 machines, which due to the bezel shape will require continuing use of the KYTronics readers.
- The TDR readers use a different cable and mounting bracket - you cannot use the KYTronics cables or mounting brackets.
- There is no need to update software to support the new reader - if your software currently supports the KYT reader - it will also support the TDR reader.
- The circuit board is mounted on the top side of the reader to help reduce liquid damage.
- The card latching arm remains unlocked if there is no power to the ATM.
- The underside of the reader is open to help drop coins that may be inserted.
- This new reader does NOT require use of a 'Reset' board when used with older machines.
- The new TDR reader is backward compatible with all models that currently support an EMV reader.
- The only exception to this are C4000 machines, which due to the bezel shape will require continuing use of the KYTronics readers.
- The TDR readers use a different cable and mounting bracket - you cannot use the KYTronics cables or mounting brackets.
- There is no need to update software to support the new reader - if your software currently supports the KYT reader - it will also support the TDR reader.
- The circuit board is mounted on the top side of the reader to help reduce liquid damage.
- The card latching arm remains unlocked if there is no power to the ATM.
- The underside of the reader is open to help drop coins that may be inserted.
- This new reader does NOT require use of a 'Reset' board when used with older machines.
- Genmega - G1900|G2500|GT3000|GT5000|Onyx|Onyx-W
- Hantle - 1700W|T4000
